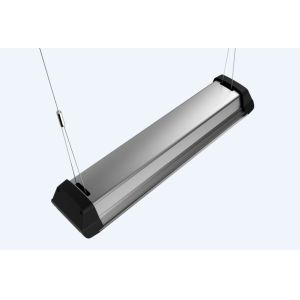

Die casting aluminum led linear high bay fixures dimmable high
power luminaire
Introducing the E-LITE LED Linear High Bay Light Fixture:
1. Super Bright - LED shop light provides 130 LPW output in 5000K
daylight white; an excellent replacement for 250W fluorescent
fixtures.
2. Easy Installation - Suspended mounting and flush mounting are
both available. The 4' shop light is easily installed to the
ceiling with included accessories.Power cord with on/off switch
included for convenient use.
3. 5 YEARS WARRANTY - is offering 5 years warranty for the 4ft led
garage shop light against any defect in materials and workmanship,
covers most damage and shipping costs for replacements. Contact us
for any quality issues.
Specifications:
PRODUCT SPECIFICATIONS |
Product name: | LED linear high bay lights |
Model No.: | EO-LN-100 |
Power: | 100W |
Working voltage: | AC100-277V, 50/60Hz |
PF: | > 0.97 |
IP Grade: | IP65 |
TECHNICAL CHARACTERISTICS |
Color: | Warm White | Natural White | Cool White |
Color Temperature: | 2700-3200K | 4000-5500K | 5700-7000K |
CRI: | >70Ra | >70Ra | >70Ra |
Light Efficiency: | 130lm/w |
View angle: | 30°× 100°; 60°× 100° |
CONFIGURATIONS |
LED chip: | Lumileds 3030 LED |
Heat sinks: | Aluminum |
Body color: | Silver |
OTHERS |
Operating Temperature: | -30℃ - 45℃ |
Operating Humidity: | 10% - 90% RH |
Storage Temperature: | -40℃ to 80℃ |
Net Weight: | 4.3KGS |
Gross Weight: | 5.4KGS |
Packing size: | 70*20*16cm |
Warranty: | 5 years |
Certificates: | CE, RoHS, SAA, ETL |
Installation Instructions:
1. Ensure that the power is OFF during installation and that power
cannot be unexpectedly reconnected.
2. Each Compact Tough Linear LED high bay comes with two suspension
brackets positioned at lateral of the luminaire.
3. For suspending these product on suspension wires from a solid
ceiling, select the appropriate mounting distance and drill holes
in accordance with the dimensions indicated in the table for the
product. Please ensure the fixings selected are suitable for
securing the suspension kits onto the substrate of the ceiling.
4. Fix the suspension wire regarding the fixing points dimensions
indicated on figure A - Hoisting. A set of 2 wires, 1m long, and
lockers are supplied.
5. The wires and fixing devices supplied are Stainless Steel 304,
please consider the specific environment characteristics where you
are installing the Linear LED High Bay to select the adequate
fixing devices (salt, humidity, causticity, acidity, temperature).
6. Only connect the supply cables when the product is securely
mounted. To avoid any strain on the cable connections.
How many shop lights should I need to light up my garage?
e.g. Each light will cover 7ftx7ft area when installed at 8-10ft,
If you have a 20ftx15ft garage that can park two cars,
(20*15)/(7*7)=6.12,so you may need 6pcs of them to light up the
whole space.
This light can also be used as overhead Workbench Light with the
59" power cord with inline switch.
